3D Scene Import

What this covers

This page describes how 3D scene import works in Edro 3D: supported file formats and their constraints, the upload and processing pipeline, and the jobs system used to track server-side processing.

Upload process

Importing a 3D scene into a project involves three stages:

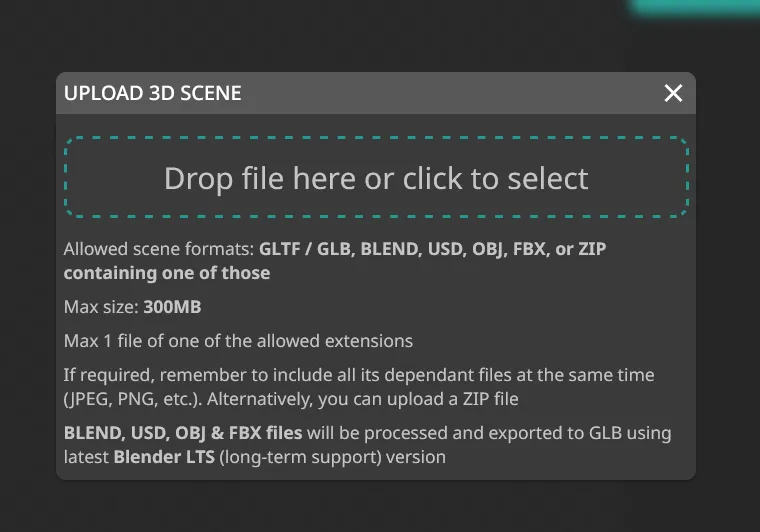

1. File selection and validation — You select one or more files (via drag-and-drop or a file picker). The editor validates the selection client-side before any upload begins:

   • At least one file must match a supported 3D scene format (see Supported formats below).
   • The combined size of all selected files must not exceed 300 MB.
   • Only one scene file (the main 3D format) is allowed per upload. Additional files (textures, dependencies) may be included alongside it.

2. Upload — Files are uploaded to Edro 3D server.

3. Processing — After upload, Edro 3D starts a processing job. The editor shows a progress indicator while the job runs. When the job finishes, the result is shown as either a success or an error with a log.

Note

If you close the upload dialog while processing is in progress, the job continues running. You can check its status at any time from the Jobs panel.

Supported formats

.gltf / .glb (GL Transmission Format)

glTF is an open standard for 3D scenes developed by The Khronos Group, designed for efficiency and broad compatibility.

• .glb files are self-contained binary packages that embed geometry, textures, and all dependencies. Uploading a single .glb file is sufficient.
• .gltf files store geometry and textures in separate files. When uploading a .gltf, you must also select all dependent files (.bin, .jpg, .png, etc.) in the same upload.

Edro 3D supports all features of the core glTF 2.0 specification, as well as the following extensions:

• EXT_mesh_gpu_instancing
• KHR_animation_pointer
• KHR_draco_mesh_compression
• KHR_lights_punctual
• KHR_materials_emissive_strength
• KHR_materials_ior
• KHR_materials_sheen
• KHR_materials_specular
• KHR_materials_transmission
• KHR_materials_unlit
• KHR_materials_volume
• KHR_texture_transform

.blend (Blender)

.blend files are native files from Blender, the open-source 3D modeling application.

Uploaded .blend files are processed on Edro’s servers using the latest available Blender LTS version. Processing exports the scene to GLB format using Blender’s built-in glTF exporter. See the Blender manual for details on that export pipeline.

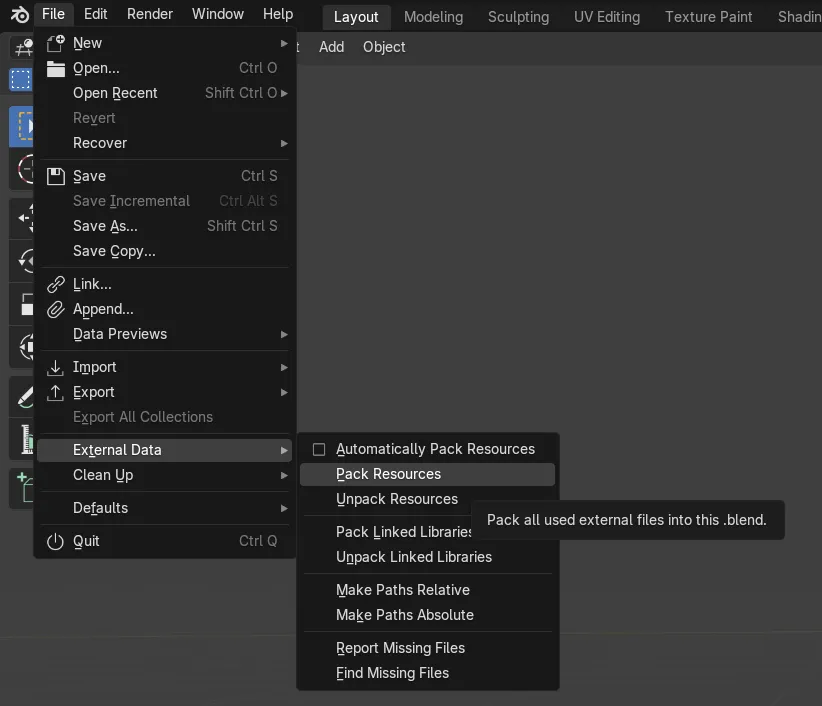

Only a single .blend file is supported per upload. Blender allows splitting scene data across multiple .blend files (for material or mesh catalogs), but the Edro 3D uploader does not support multi-file .blend setups. Before uploading, ensure the file is self-contained. You can use Blender’s Pack Resources or Automatically Pack Resources feature to bundle all dependencies into a single file.

.usd / .usdc / .usda / .usdz (Universal Scene Description)

USD files are processed using the latest Blender LTS version. The process imports the file into Blender and exports it to GLB. If the result is not as expected, performing this import/export manually in Blender can help identify compatibility issues.

Note

Edro 3D is working on improving compatibility with USD formats.

.obj (Wavefront OBJ)

OBJ files are processed using the same Blender LTS import-and-export-to-GLB pipeline as USD. Associated material (.mtl) and texture files can be included alongside the .obj in the same upload.

.fbx

FBX files are processed using the same Blender LTS import-and-export-to-GLB pipeline as USD and OBJ.

.zip

ZIP archives can be used to bundle a scene file together with all its dependencies (textures, material files, etc.) in a single upload. The archive must contain exactly one file matching a supported 3D scene format.

Note

We are working to support an increasing number of formats. If there is a format or feature that is vital to your workflow, please share it with us.

Constraints and limits

Constraint	Value
Maximum combined upload size	300 MB
Scene files per upload	1
Dependency files per upload	Unlimited (within the size limit)

Processing jobs

All 3D scene uploads require server-side conversion, and are handled asynchronously as jobs. A job is created when you trigger processing and runs on the server independently of your browser session.

Job states

State	Meaning
Ongoing	The job is currently running.
Success	Processing completed without errors.
Error	Processing failed. A result log is available.

Viewing jobs

You can open the Jobs panel from the editor toolbar at any time to see all jobs for the current project, including their start time, finish time, and status. For completed jobs, a View logs button opens the full result log output, which is useful for diagnosing processing errors.
